When the Family Home You’ve Known Your Whole Life Starts Falling Apart: A Basement Repair Story in Wichita, KS
- Location: Wichita, KS 67220
- Property Type: Single-family home, full basement with attached garage
- Project Date: February 2025
The Challenge: A Bowing Basement Wall and Severe Lateral Soil Pressure

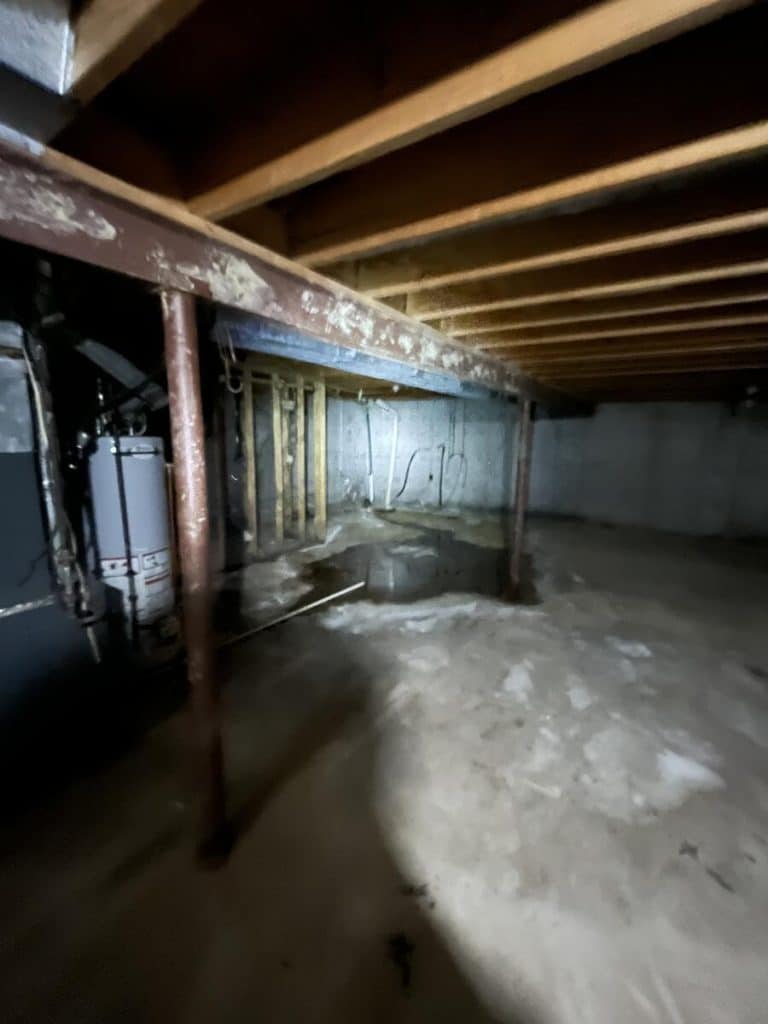

A homeowner in Wichita, Kansas, reached out to Spartan Ram Jack after discovering alarming changes in their basement. The home, which had been a foundational piece of the family’s life for decades, was experiencing severe structural distress along its main basement foundation wall.
Expanding clay soils common to the Wichita region had saturated during seasonal rains, creating immense hydrostatic pressure—the dynamic lateral force exerted by moisture-laden soil against a subterranean structure. This pressure pushed relentlessly against the exterior of the concrete block wall, resulting in severe structural failures:

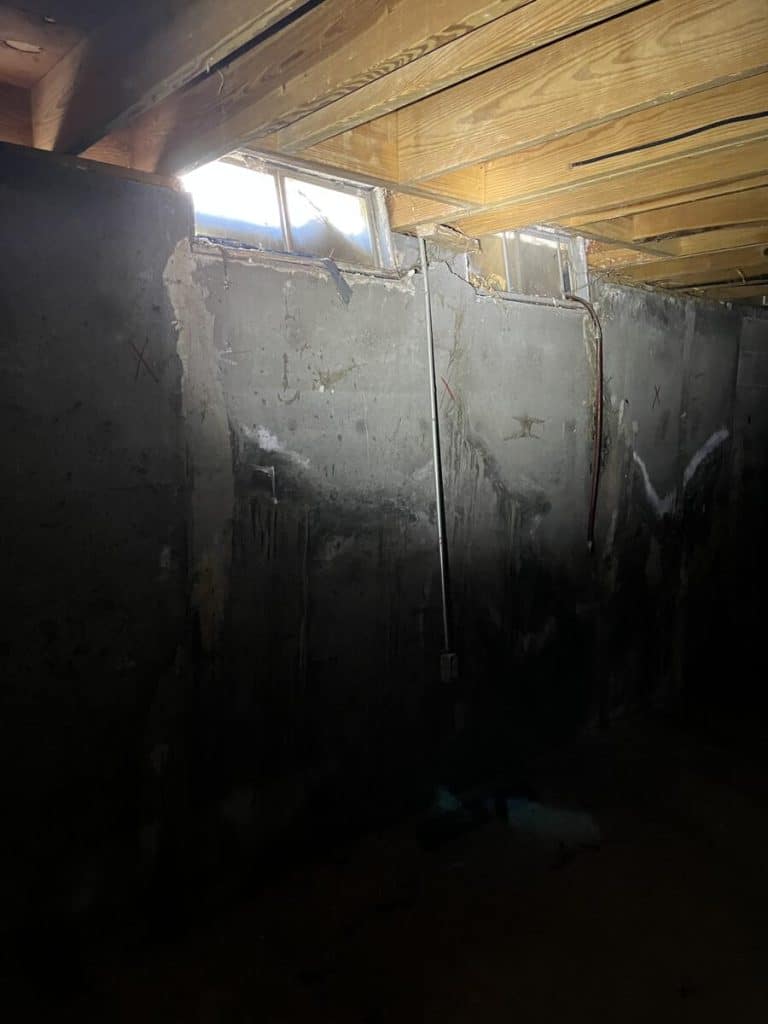

- Inward Wall Bowing: The center of the basement wall was visibly deflecting inward, pulling away from its original plane.
- Severe Horizontal Cracking: Large stair-step and horizontal fractures had developed across the mortar lines, a definitive signature of lateral structural failure.
- Imminent Collapse Hazard: If left unaddressed, the continuous soil pressure threatened to entirely breach the wall’s load-bearing capacity, risking a catastrophic localized collapse of the floor joists above.
- Threatened Family Legacy: Beyond the material risks, the accelerating structural shifting put a stressful halt on the family’s ability to enjoy or safely pass down their multi-generational home.
The extreme lateral forces had compromised the structural perimeter, making immediate mechanical stabilization an absolute necessity.
Our Solution: Interior Wall Realignment and Steel Support Beam Installation
Spartan Ram Jack Wichita designed a targeted, highly robust structural remediation plan tailored specifically for bowing basement perimeters. Rather than executing disruptive, costly exterior excavations that would destroy the home’s historic landscaping, the engineering team implemented an advanced interior counter-force system utilizing heavy-duty steel structural I-beams.
The installation procedure was carried out through systematic, high-precision phases:
- Slab Penetration and Base Footing Anchor Prep: Small, localized sections of the concrete basement floor slab were breached adjacent to the bowing wall to allow the structural beams to sit directly on the solid concrete footing below.
- Floor Joist Tension Bridging: Engineered steel bracket assemblies were secured directly to the wooden floor joists above. These brackets act as the upper anchor points, distributing the lateral load safely across the floor system.
- Heavy-Duty I-Beam Placement: Custom-fabricated, commercial-grade steel I-beams were stood vertically against the deflecting masonry block wall.
- Mechanical Tensioning and Torquing: Using heavy-duty structural tension bolts at the upper floor joist brackets, pressure was systematically applied to the beams. This mechanical force tightly binds the steel columns to the masonry, providing a rigid, unyielding counter-thrust to halt the expanding clay soils outside.
The Results: A Permanently Stabilized Foundation and Preserved Family History
The structural intervention completely arrested the inward movement of the masonry wall, restoring long-term safety and structural integrity to the residence.
- Total Lateral Stabilization: The steel I-beam network successfully neutralized the hydrostatic soil pressure, ensuring the bowing wall can never shift inward again.

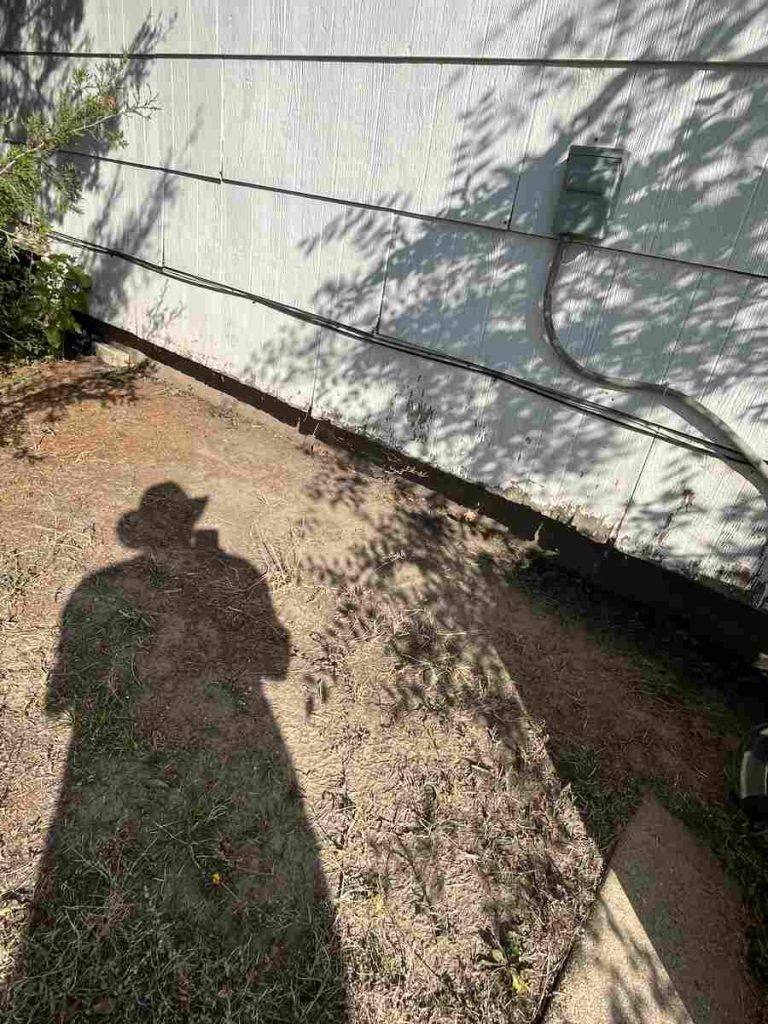

- Preserved Landscaping and External Footprint: Because the remediation was executed entirely from the interior, the home’s outer yard, mature trees, and landscaping remained untouched.
- Immediate Structural Relief: The framing system alleviated stress on the upper levels of the home, eliminating binding doors and stabilizing the subfloor assemblies directly above the basement.
- Long-Term Peace of Mind: With a permanently reinforced foundation, the homeowner successfully preserved their family home, ensuring its safety and structural equity for decades to come.
Protect Your Home’s Foundation with Spartan Ram Jack
Foundation issues never improve with time; they only get more expensive to fix. If you have noticed bowing basement walls, horizontal masonry cracks, or sticking doors in your home, acting early can save your property from severe structural failure and costly exterior excavation.
Spartan Ram Jack provides homeowners across Kansas and Missouri with permanent, engineered foundation repair solutions backed by a lifetime warranty. Don’t wait for a shifting foundation to compromise your family’s safety or property value.
