Wall Anchors

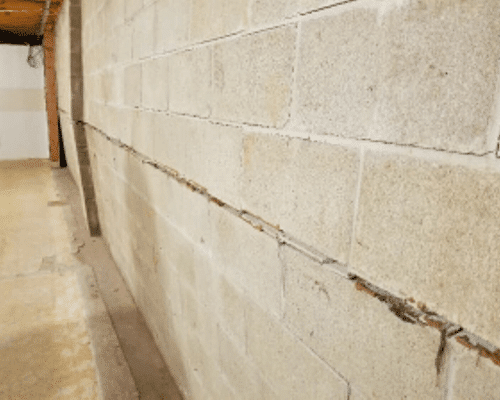

Wall Anchors for Repairing Bowing Walls
Missouri & Kansas Bowing Wall Repair Solutions
At Spartan Ram Jack, we specialize in engineered earth anchor systems that permanently stabilize leaning or bowed basement walls by transferring dangerous lateral soil pressure to stable ground beyond your foundation. Our proven solutions are designed to halt wall movement and gradually restore walls toward their original position while working with all wall types. Help repair your home foundation and get it back to normal. Contact us today to schedule your complimentary foundation evaluation and permanently secure your foundation walls with professional earth anchor technology.
What Are Basement Wall Anchors
Basement wall anchors are engineered foundation repair systems that stabilize bowed, leaning, or cracked basement walls by transferring lateral soil pressure from your compromised foundation to stable soil zones located beyond the area of movement.

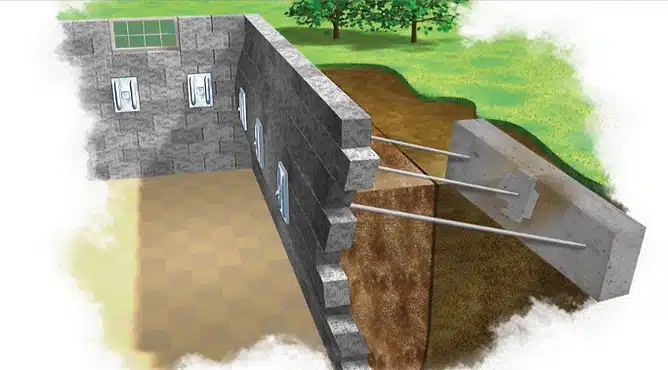

These systems work by installing buried anchors in undisturbed ground outside your basement, then connecting them to interior wall plates through high-strength steel tie rods that pass through your foundation wall. The anchor creates resistance against the inward pressure from expanding or shifting soil, effectively stopping further wall movement while allowing for gradual correction over time.
The system functions as a permanent tie-back solution that utilizes the bearing capacity and friction resistance of stable soil to counteract the forces trying to push your basement walls inward.
Unlike temporary fixes or interior-only solutions, wall anchors address the root cause of wall movement by creating a balanced structural system that redistributes loads safely into competent soil. Installation involves strategic placement of anchors at calculated distances from your foundation, ensuring they’re positioned in soil zones unaffected by the same conditions causing your wall problems, providing reliable long-term stability for your foundation.
The Benefits of Foundation Wall Anchor Systems
Foundation wall anchors provide superior stabilization and long-term value compared to other basement wall repair methods, making them the preferred choice for serious structural issues. Here’s a list of benefits that talk about exactly why:
- Immediate Wall Stabilization – Anchors halt further wall movement the moment they’re installed and tensioned
- Gradual Wall Straightening – The adjustable tie rod systems allow progressive correction of wall position over time
- Minimal Interior Disruption – Low-profile wall plates preserve basement space and allow for finished basement completion
- Works with All Wall Types – Effective on concrete block, poured concrete, clay tile, and stone foundation walls
- Permanent Structural Solution – Engineered systems provide decades of reliable performance without degradation
- Exterior Access Flexibility – Can be installed even with walkout basements and various landscape configurations
- Superior Holding Capacity – Anchors in stable soil provide maximum resistance against lateral earth pressure
- Weather-Independent Installation – Can be installed year-round regardless of seasonal conditions
- No Floor Joist Impact – Installation doesn’t compromise or interfere with existing floor framing systems
Basement Wall Anchor Systems We Install & Repair
Engineered Plate Foundation Anchors (Spartan Wall Anchors)

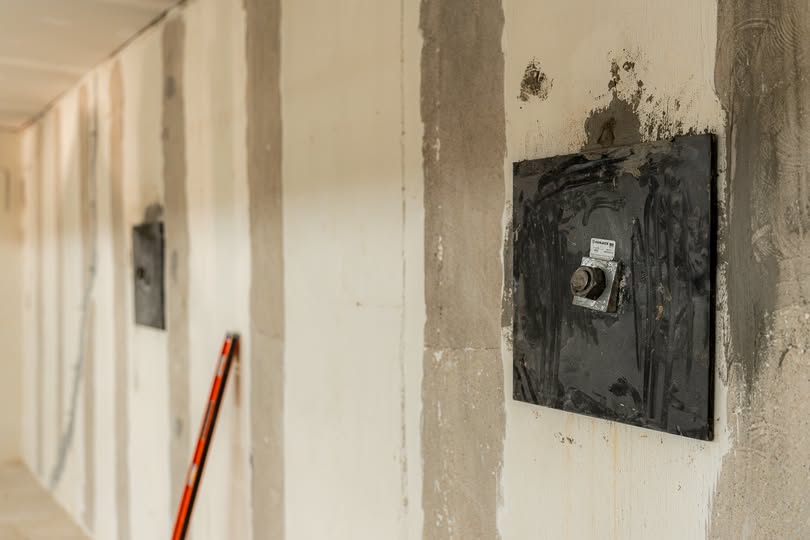

At Spartan Ram Jack, we use the proven Spartan Wall Anchor system to stabilize bowed or leaning basement walls made of concrete block, poured concrete, clay tile, or stone. This engineered solution consists of three main components: an inner wall plate that distributes load across your basement wall, an outer soil anchor plate buried in stable ground beyond the failure zone, and a connecting rod that links these components while allowing for subsequent tightening.
The Spartan Wall Anchor’s adjustable design allows gradual tightening over time, which may help you regain some of the inward movement your wall has experienced, progressively restoring it toward its original position. The system’s low-profile wall bracket preserves your basement’s appearance for finishing while providing a cost-effective alternative to expensive wall replacement. This less invasive solution doesn’t impact floor joists, works effectively with walkout basements, and comes backed by a 25-year warranty for lasting structural protection.
Concrete Earth Anchors (Lifetime Earth Anchors)
We also utilize Lifetime Earth Anchors, also known as Concrete Earth Anchors. These function similarly to engineered plate anchors but employ a different anchoring mechanism for enhanced holding power. Instead of relying on anchor plates, this system features anchors encased in poured concrete blocks buried underground in stable soil zones. The concrete encasement provides superior mass and friction resistance, utilizing both the weight of the concrete and the bearing capacity of surrounding soil to create maximum holding force against lateral earth pressure.
Lifetime Earth Anchors are perfect in applications requiring exceptional structural support, particularly for more massive walls or severe foundation movement situations. This robust system requires no ongoing maintenance or periodic tightening, providing a truly permanent solution that allows for gradual wall realignment over time. technology.
Why Choose Spartan Ram Jack For Wall Anchor Installation
When foundation wall stability is at stake, trust Spartan Ram Jack’s proven expertise in earth anchor systems. As a family-owned business established in 2007 and proud member of the RAM JACK national network since 1968, we bring decades of engineering excellence to every foundation project.
Our dedicated employee installation teams are not subcontractors, and ensure consistent quality and direct accountability throughout your earth anchor installation. We demonstrate confidence in our structural solutions with industry-leading warranties: 25 years on Spartan Wall Anchors and lifetime coverage on Concrete Earth Anchors. Most importantly, we never require upfront deposits—you pay only when your earth anchor system is installed and performing exactly as guaranteed, providing the financial security and peace of mind your family deserves.
Next Step: Schedule Your Foundation Evaluation
Let our proven earth anchor systems provide permanent stabilization and gradually restore your foundation walls to safer positions. Our engineered solutions come backed by industry-leading warranties. Contact Spartan Ram Jack today to schedule your complimentary home foundation evaluation and permanently protect your home with professional earth anchor technology.
