Bowing Wall Repair
Solutions to Straighten Your Foundation Walls
Proudly Serving Kansas City, Wichita, Springfield, & Columbia
Bowed foundation walls signal serious structural failure requiring immediate attention. When basement walls curve inward from soil pressure, your home’s structural integrity faces progressive damage that worsens with every seasonal wet-dry cycle common to Kansas and Missouri’s expansive clay soils. Left unaddressed, bowed walls lead to catastrophic foundation collapse, chronic water intrusion, and property values that plummet alongside repair costs that escalate from thousands to tens of thousands of dollars.
At Spartan Ram Jack, our engineer-owned team diagnoses the severity of wall bowing and delivers permanent stabilization solutions designed specifically for the challenging soil conditions across Kansas City, Wichita, Springfield, and Columbia. Schedule your free foundation inspection today and discover exactly what your foundation needs to protect your home’s structural integrity and value.
What Are Bowed Foundation Walls?

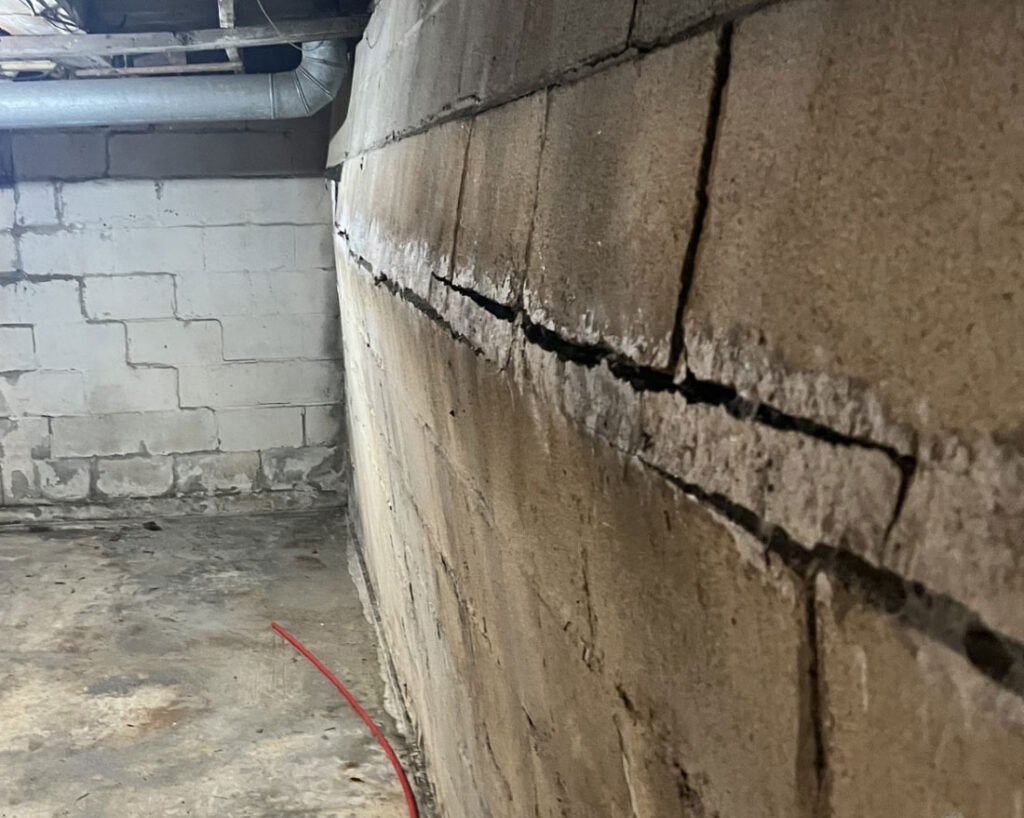

Bowed foundation walls are basement or foundation walls that curve inward from external soil pressure pushing against the foundation. This inward bending creates a structural compromise that progresses through three distinct stages, each requiring increasingly urgent intervention.
Early Stage (Bowing Less Than 1 Inch): Hairline horizontal cracks appear in the wall, typically at mid-height where pressure concentrates. The wall shows slight inward lean visible when sighting down the wall from the corner. At this stage, the foundation still maintains structural integrity, but the bowing will inevitably progress without repair.
Moderate Stage (Bowing 1-2 Inches): The inward curve becomes clearly visible, with stair-step cracks forming in block walls and horizontal cracks widening in poured concrete. Water begins seeping through cracks during heavy rains. The wall’s load-bearing capacity decreases as the bow transfers stress to upper and lower connection points.
Severe Stage (Bowing 2+ Inches): The wall demonstrates significant structural compromise with visible separation from the floor or ceiling. Cracks widen to allow continuous water infiltration. The foundation approaches catastrophic failure, with collapse risk increasing substantially. Floors above may show signs of instability as the compromised wall fails to support the structure’s weight properly.
What Causes Foundation Walls to Bow?
Several factors accelerate wall bowing beyond soil composition:
- Poor drainage traps water against walls, increasing hydrostatic pressure
- Inadequate gutters and downspouts dump water directly beside the foundation, concentrating moisture in the worst possible location
- Improper grading slopes toward the house, directing surface water straight to the foundation rather than away from it
- Tree roots near foundation walls absorb moisture unevenly, creating pressure points and soil instability
- Freeze-thaw cycles expand water in saturated soil, adding seasonal pressure spikes
- Improperly compacted backfill soil from original construction settles over time, creating drainage pathways that channel water directly against walls
Our Bowed Wall Repair Solutions
Reinforcement Beams
Perfect for stabilizing bowed walls using vertical steel I-beams installed against the interior wall surface, anchored to floor joists above and the concrete slab below. These beams redistribute lateral pressure through your home’s structural framing, providing permanent stabilization with minimal basement space requirements.
Carbon Fiber Straps
These provide non-invasive strengthening for walls with minor to moderate bowing through high-strength carbon and Kevlar composite straps applied vertically to the wall surface. This solution requires no excavation and works especially well for finished basements where preserving existing finishes matters.
Ground Anchors
These stabilize severely bowed walls using earth anchors installed 10-15 feet beyond the foundation in stable soil, connected to interior wall plates with steel rods. This system stops further bowing and can gradually straighten walls over time through periodic tightening.
Helical Anchors
These anchors install from inside the basement at an angle, screwing deep into stable soil with minimal exterior excavation. This advanced system excels when limited yard access, walkout basements, or landscaping preservation makes traditional ground anchors impractical.
Wall Realignment
Perfect for addressing severely bowed walls requiring complete restoration to vertical position through controlled house lifting, exterior excavation, and permanent steel beam reinforcement. This advanced technique becomes necessary when wall displacement exceeds what standard reinforcement can correct.
Measurement Test
To check if your wall is bowing, hold a straight board or level vertically against the wall at several points. Measure the gap between the board and the wall at the center point. Any gap exceeding half an inch indicates measurable bowing requiring professional assessment and a possible need for foundation repair services. Gaps exceeding one inch signal moderate to severe structural compromise demanding immediate inspection.
Why Choose Spartan Ram Jack
When bowed foundation walls threaten your home’s structural integrity, trust Spartan Ram Jack for expert assessment and permanent solutions backed by structural engineering expertise. Our team understands the challenging clay soils and weather patterns across Kansas City, Wichita, Springfield, and Columbia, ensuring you receive the right solution for your specific conditions.
Every repair includes our Life of Structure transferable warranty, employee installation crews rather than subcontractors, and USA-manufactured RAM JACK steel components proven over five decades. We require no deposit and you pay nothing until the job completes to your satisfaction.
Protect Your Home from Foundation Wall Failure
Foundation wall bowing worsens with every season, escalating from minor damage to catastrophic failure without intervention. At Spartan Ram Jack, we deliver permanent stabilization solutions backed by Life of Structure warranties across Kansas City, Wichita, Springfield, and Columbia. Schedule your free foundation inspection today and stop foundation wall failure before it compromises your home’s safety and value.
