Fixing Bowing Basement Walls and Water Intrusion in a 1950s Roeland Park HomeĀ
- Location: Roeland Park, KS, 66205
- Property Type: 1950ās single family home with full basement and attached garage
- Project Date: June 2026
The Challenge: Hydrostatic Pressure and Expansive Soil Were Bowing Basement Walls and Compromising the Homeās Structural Integrity
A homeowner in Roeland Park, Kansas, contacted us at Spartan Ram Jack after noticing troubling deterioration throughout their basement. The residence, which had served as the family’s cornerstone for many years, was showing critical structural compromise across multiple foundation walls.
Expansive clay soils typical of the Roeland Park area had absorbed moisture from heavy precipitation, generating substantial hydrostatic pressureāthe powerful lateral force created by water-saturated earth pressing against below-grade structures. This force pushed continuously against the exterior concrete block walls, causing multiple structural problems:

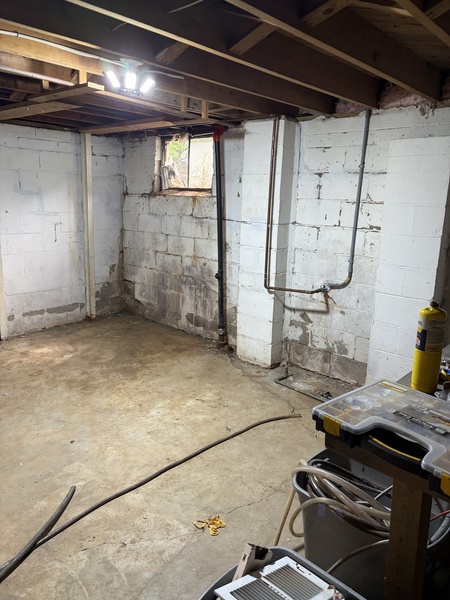

- Front and Back Wall Deflection: Both the front and rear basement walls exhibited noticeable inward bowing, deviating from their original vertical alignment.
- Inadequate Previous Bracing: A section of wall that had been previously stabilized now required an additional support beam to maintain structural integrity.
- Water Penetration Evidence: Clear signs of moisture intrusion appeared on the basement walls, indicating ongoing water infiltration issues.
- Compromised Home Stability: Without intervention, the persistent soil forces and water damage would continue degrading the walls’ structural capacity, jeopardizing the home’s overall stability and the family’s investment.
The excessive lateral pressures and moisture problems had weakened the foundation perimeter, making prompt professional reinforcement absolutely critical.
Our Solution : Installed Steel I-Beams, Perimeter Drainage, and a Sealed Moisture Barrier
Spartan Ram Jack Kansas City implemented a comprehensive, multi-phase structural stabilization and moisture control plan engineered specifically to secure bowing perimeter walls and manage sub-slab water pressure without invasive exterior excavation.
The remediation and waterproofing procedure was executed through precise, systematic phases.

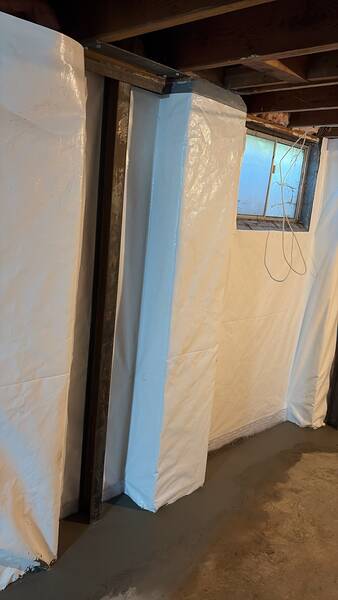

- Structural Wall Stabilization: Heavy-duty steel I-beams were installed vertically along the interior foundation walls at engineered intervals. Anchored directly into the concrete floor slag at the base and secured to the floor joists above with custom blocking, these columns provide a rigid counter-force that halts further inward wall movement.
- Perimeter Sub-Slab Excavation: A precise 6-to-12-inch strip of concrete slab was removed along the interior perimeter to construct a dedicated drainage channel directly adjacent to the affected footing.
- Internal Drainage Conduit Installation: Specialized high-capacity drainage pipe and dimple board were set within the perimeter trench to capture water intruding at the floor-wall joint and route it safely away from the foundation.

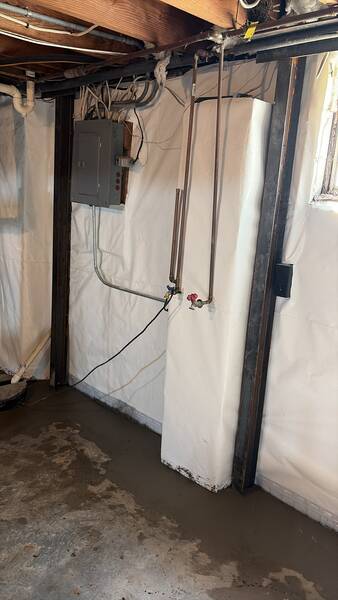

- Wall Encapsulation & Moisture Barrier: A reinforced, antimicrobial 14-mil vapor membrane was installed across the wall surface. This durable, tear-resistant barrier seals out ground vapors, stops liquid water penetration, and transforms the space into a dry, clean environment.
- Slab Restoration & Final Integration: The interior perimeter trench was backfilled and re-capped with fresh concrete, fully encasing the drainage system and permanently locking the base of the structural wall beams into position.
The Outcome: A Permanently Secured Foundation and Protected Roeland Park Home
Spartan Ram Jack’s structural solution completely halted the inward deflection of the basement walls, restoring enduring safety and structural soundness to the Roeland Park residence.
- Complete Lateral Reinforcement: The steel I-beam system effectively counteracted the hydrostatic soil forces, guaranteeing the deflected walls cannot shift inward further.
- Protected Landscaping and Exterior Appearance: Since Spartan Ram Jack executed the remediation entirely from inside, the property’s exterior yard, established trees, and landscaping remained undisturbed.
- Instant Structural Support: The bracing system relieved pressure on the home’s upper floors, resolving sticking doors and stabilizing the subfloor structures directly above the basement.
- Enduring Confidence: With a permanently strengthened foundation, the homeowner successfully protected their family residence, guaranteeing its safety and structural value for generations ahead.
