When Your Main Beam Just Disappears: A foundation Case Study in Overland Park, KS

The Challenge: Drywall Cracks and a Major Hidden Failure

Kyle noticed increasing drywall cracks appearing throughout his Overland Park home. What started as a cosmetic concern quickly revealed much deeper structural problems during the Spartan Ram Jack Kansas City inspection:

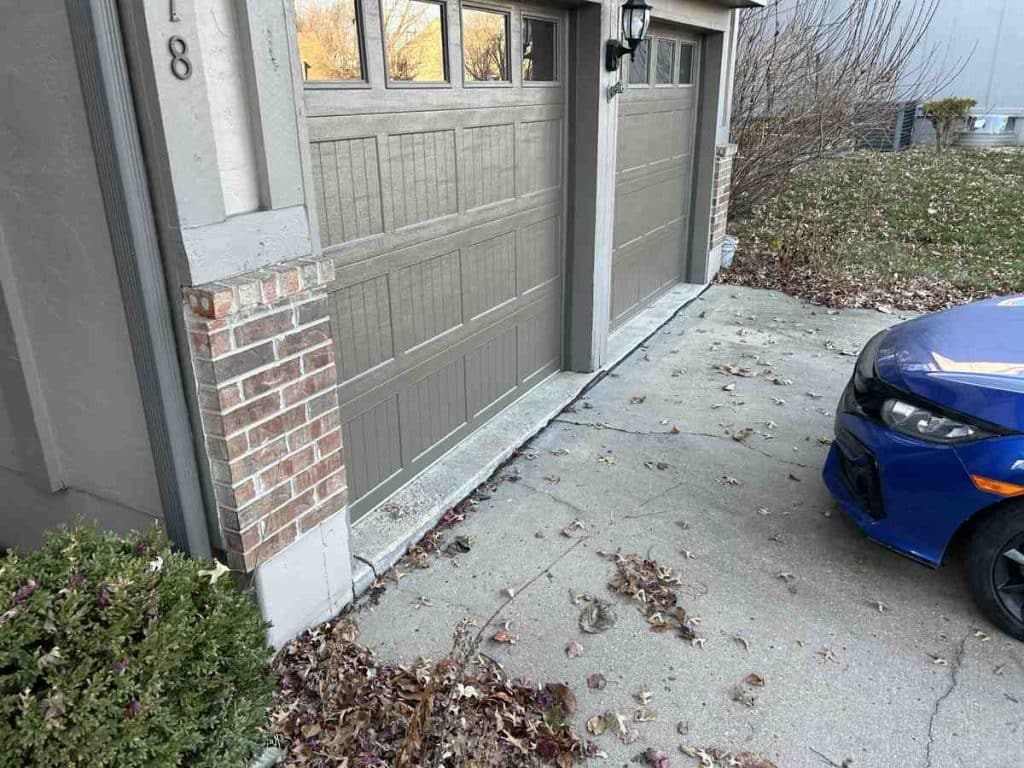

Differential foundation settlement — The home was sinking unevenly, starting at the front door, extending toward the garage side, and continuing to the back right corner. This created visible foundation cracks around the perimeter.
Expansive clay soil issues — Common in the Kansas City area, the soil’s constant swelling and shrinking destabilized the foundation over time.
Critical main beam failure — A 10-foot section of the main support beam was completely missing. This left a large portion of the house unsupported in the center, causing widespread interior sagging and cracks far from the exterior walls.

These combined issues threatened the home’s structural integrity and explained the escalating drywall damage.

Our Solution: Full Perimeter Stabilization + Interior Structural Repair

Spartan Ram Jack Kansas City developed a comprehensive plan to stabilize the foundation from the outside in while addressing the critical internal failure:

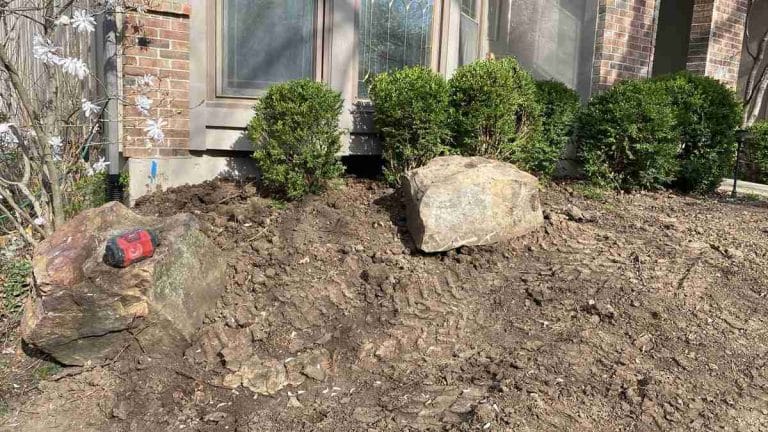

1. Perimeter Foundation Stabilization

Installed 18 driven steel piers total (12 full-depth exterior, 3 interior, 2 shallow-depth exterior, and 1 hand-dug).
Piers driven approximately 21 feet (or deeper as needed) to reach stable bedrock/competent soil.
Attached piers securely to the footing for permanent support.

2. Wall Stabilization & Reinforcement

West wall: Excavated 147 sq ft, installed 4 earth anchors with concrete buttresses for permanent hold.
South wall: Excavated 196 sq ft, installed 6 adjustable wall stabilizers.
North wall: Installed 7 interior steel wall beams (after removing a previously failed beam).
East wall: Installed 1 preventive wall beam.
Replaced multiple window wells during excavation.

3. Main Beam Repair

Installed a helical pier beneath the 10-foot gap with temporary shoring in place.
Added a new proper column post to transfer the load from the main beam to the new pier.
Removed temporary supports once the permanent system was in place.

4. Bonus Improvements

Installed 52 linear feet of interior perimeter drainage system + 98 linear feet of reinforced vapor barrier for basement waterproofing.

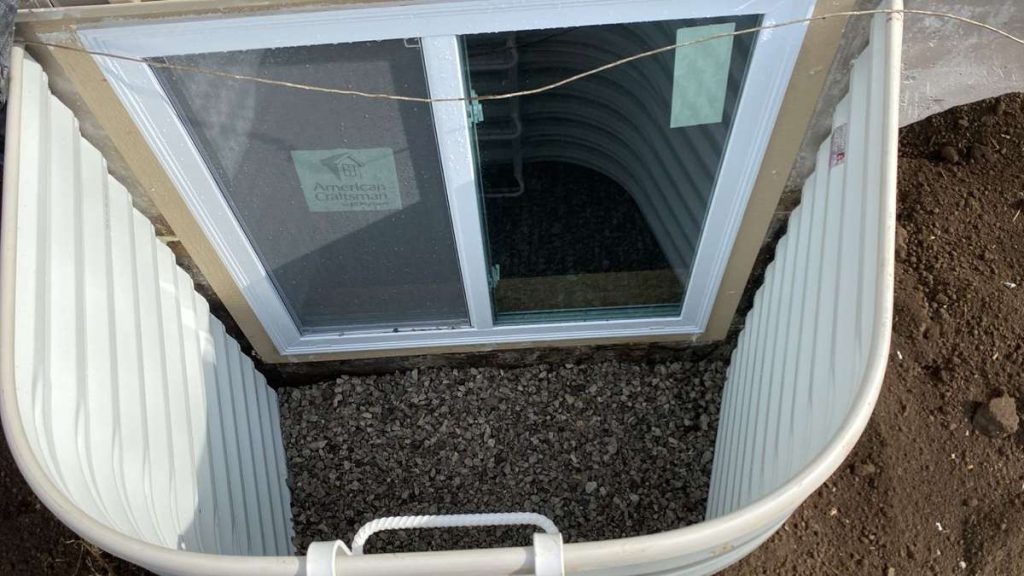

Installed a new code-compliant egress window.
Professionally relocated A/C unit, restored landscaping, replaced garage floor sections, and handled fence access.

The Results

Foundation fully stabilized with 18 deep piers anchored to bedrock.
Main beam gap permanently repaired — center of the home no longer sagging.
Bowing walls secured and prevented from further movement.
Basement now drier and safer with new drainage, vapor barrier, and egress window.
All work completed with minimal disruption and full yard restoration.
Backed by a transferable life-of-structure warranty on piers.

Customer Outcome:

Kyle’s home is now structurally sound from perimeter to center. Drywall cracks have stopped progressing, and the basement is safer and more usable. He has peace of mind knowing the foundation issues are permanently resolved.

Why This Matters for Kansas City Area Homes

Differential settlement and hidden support failures are common in the KC metro due to expansive clay soils. Multiple drywall cracks (especially scattered throughout the home) are often a red flag that something serious is happening below.
