Helical Piers Stabilize Settling Church Foundation in Wichita, KS
- Location: McPherson, KS 67460
- Property Type: Church
- Project Date: April 2026
The Challenge: Foundation Settlement Compromising Structural Integrity

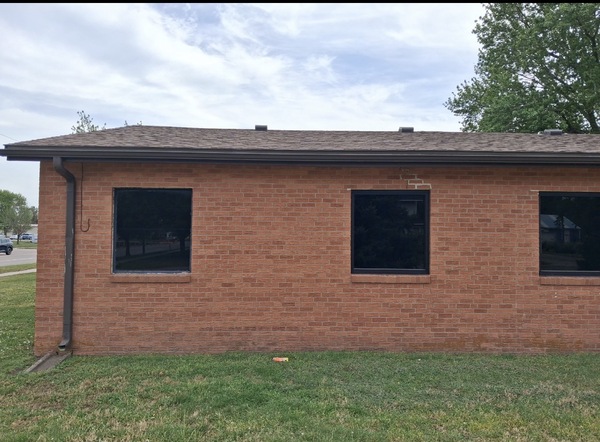

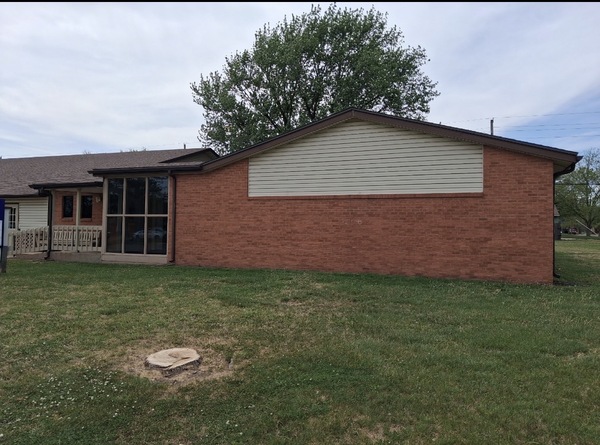

During exterior inspection of this church building, significant brick façade cracking was observed. Foundation movement was evident. Understanding crack patterns, development timeline, and drainage conditions proved essential for accurate diagnosis, alongside precision elevation measurements. A scaled drawing of the original north church structure was created, with elevation surveys conducted using a precision Zip Level.
Analysis of recorded elevations and crack locations revealed settlement, heaving, and seasonal recovery occurring simultaneously. The north wall’s approximate center and chapel floor area experienced heaving from expansive clay soil pushing upward.
This structure required professional foundation repair Wichita. Assessment identified areas needing helical piers Wichita for stability restoration. The NE, NW, and SW corners settled but seasonally recovered from recent moisture. These corners will likely settle again during dry periods. Clay soil elevations fluctuate with seasonal saturation and desiccation cycles.
Our Solution: Helical Pier Foundation Stabilization
Spartan Ram Jack Wichita implemented a comprehensive foundation repair Wichita strategy utilizing helical pier technology to address structural settlement issues for this residence. The stabilization process was executed through systematic, engineered phases.
Heavy Equipment Mobilization
Our crew mobilized specialized equipment to the project site, coordinating loading, unloading materials, and travel logistics for efficient project execution.
Helical Pier Installation – External Areas

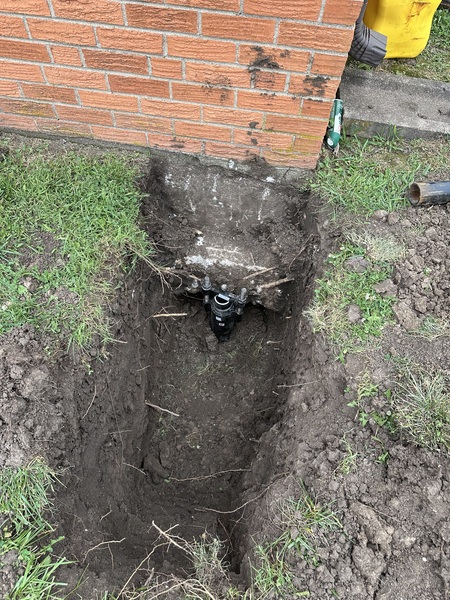

We performed machine excavation to the footing at each designated pier location (estimated depth under 4 feet) and installed Ram Jack certified steel helical piers Wichita to stabilize the foundation in affected areas.
Pier spacing was calculated based on structural weight estimates and wall spanning capacity.
Following installation, we backfilled using existing soil.
Depth Specifications: This installation assumes a maximum depth of 35 feet per pier, adjusted according to soil conditions.
Site Restoration
During external foundation repair projects, heavy equipment and required excavation impact the yard. As part of our standard process, we backfilled and returned ground to appropriate grade. Additionally, we seeded and applied straw ground cover to disturbed areas.
The Outcome: A Permanently Stabilized Foundation and Secured Wichita Property
Spartan Ram Jack Wichita’s comprehensive solution completely halted the foundation settlement, restoring lasting stability and structural integrity to this church building.
- Complete Structural Stabilization: The helical piers Wichita system effectively counteracted the settlement pressure, ensuring the compromised foundation cannot sink further.
- Protected Chapel and Building Areas: Spartan Ram Jack’s strategic excavation and pier installation maintained functional access throughout the project while permanently securing the north wall and corner sections.
- Immediate Settlement Relief: The pier system eliminated stress on the foundation, preventing progressive deterioration and catastrophic structural failure risks.
- Lasting Peace of Mind: With a permanently reinforced foundation, the property owners successfully safeguarded their investment, ensuring its stability and structural worth for decades to come.
Why This Matters for Homes in Wichita, KS
Church buildings and structures with expansive clay soil are particularly vulnerable to foundation settlement. Subtle signs like brick façade cracking, shifting walls, or fresh diagonal cracks indicate that the underlying soil is giving way. Ignoring these early warning signs can quickly lead to severe structural damage, compromising your building, living spaces, and overall property value. Professional evaluation and permanent foundation repair Wichita with helical piers Wichita are essential to protect your property’s structural integrity.
