Injection Crack Repair in Springfield, MO Stops Basement Wall Leaks
- Location: Springfield, MO 65807
- Property Type: 1980s single-family brick home
- Project Date: August 2026
The Challenge: Foundation Settlement Compromising Structural Integrity at Springfield Residence
A property agent contacted Spartan Ram Jack Springfield requesting basement evaluation showing water intrusion indicators. This residence, with paneling removed but wall studs remaining, required professional assessment to determine appropriate repair solutions.
Our thorough inspection identified specific areas demanding crack repair Springfield expertise and basement waterproofing Springfield intervention to restore structural protection:

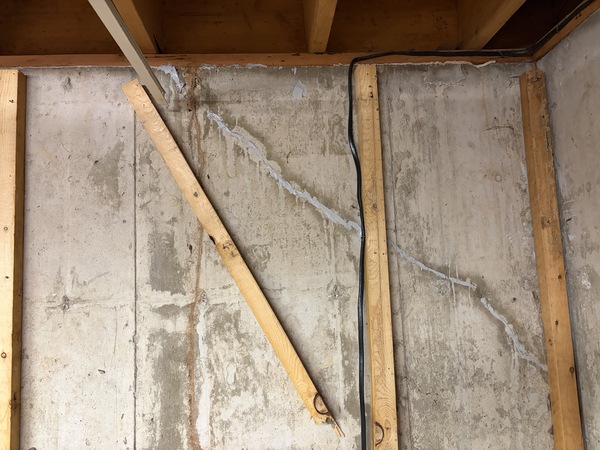

- Window Area Deterioration: Wall cracks near windows revealed moisture penetration requiring immediate attention.

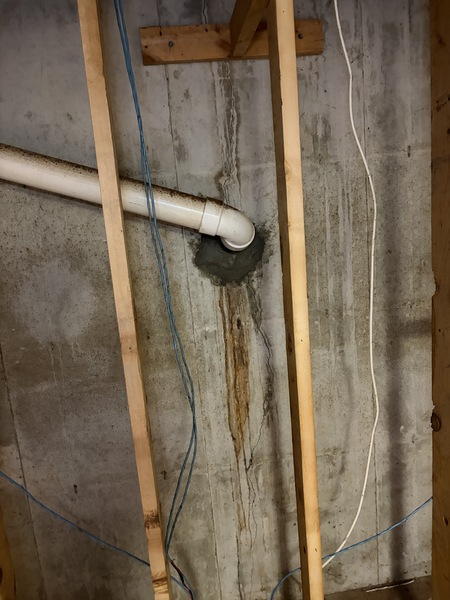

- Sewer Pipe Intrusion: The pipe entry point showed clear water leakage evidence through wood and wall staining patterns.
- Termite Damage Documentation: Previous termite activity had compromised wood structural elements in affected zones.
- Framing Obstruction Issues: Inch-and-a-half studding covered crack locations, while window bottom plates needed removal before epoxy injection procedures. Homeowner responsibility for wooden component replacement requires discussion upon contract acceptance.
- Progressive Water Damage: Without expert crack repair Springfield intervention and proper sealing, continued moisture intrusion would accelerate structural deterioration, potentially causing extensive damage throughout basement areas.
The documented crack patterns and pipe intrusion necessitated strategic epoxy injection with transferable warranty coverage. This targeted approach provides permanent foundation protection, preventing further water penetration while safeguarding the home’s structural framework from additional moisture-related damage. Supplied photographs and hand-drawn bid documentation detail injection placement and pipe sealing locations.
Our Solution: Crack Repair and Basement Waterproofing
Spartan Ram Jack Springfield implemented a comprehensive crack repair Springfield strategy utilizing injection technology to address structural concerns for this Springfield, MO residence.
The repair process was executed through systematic, engineered phases.
- Light Crew Mobilization: Our crew mobilized to the project site, handling material loading, unloading, and coordinating travel logistics for efficient project execution.

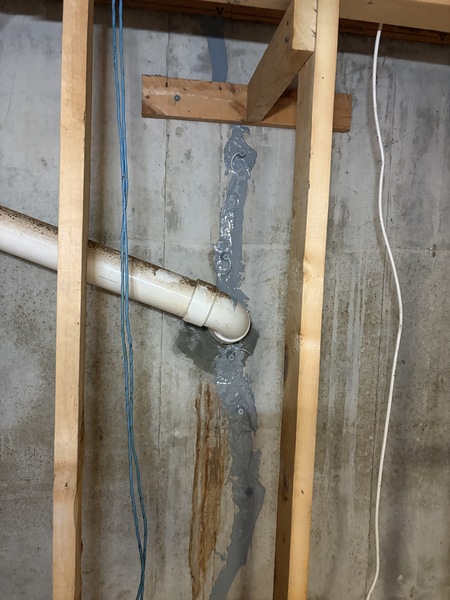

- Crack Injection – Urethane: We cleaned and prepared the cracked area and installed injection ports at each designated location. Following preparation, we sealed the interior crack surface with epoxy and injected urethane material to fill the entire void in the basement wall. Injection ports remain in place unless specified otherwise. This procedure includes a lifetime transferable warranty.
- Pipe Intrusion Sealing: We utilized hydraulic cement or non-shrink mortar mixed fast drying to plug the 4-inch hole on the far left side of the sewer line. This step was completed before epoxy injection to allow proper drying time.
- Material Specifications: This installation includes general materials and labor for sealing pipe intrusion before epoxy injection.
Due to concerns regarding excess cracking, basement waterproofing Springfield solutions such as interior drain systems may be considered for comprehensive protection without compromising the home’s structural integrity.
The Outcome: A Permanently Stabilized Foundation and Secured Springfield Property
Spartan Ram Jack Springfield’s comprehensive solution completely stopped the foundation settlement, restoring enduring stability and structural integrity to the residence.
- Complete Structural Stabilization: The helical pier system effectively addressed the settlement pressure, ensuring the compromised foundation cannot descend further, complementing our crack repair Springfield services.
- Protected Bedroom and Living Areas: Spartan Ram Jack’s strategic excavation and extended bracket installation preserved functional access throughout the project while permanently securing the southern and western bedroom sections.
- Immediate Settlement Relief: The pier system removed stress on the slab-on-grade foundation, preventing progressive deterioration and catastrophic structural failure risks, similar to our basement waterproofing Springfield solutions.
- Lasting Peace of Mind: With a permanently reinforced foundation, the homeowners successfully protected their property investment, ensuring its stability and structural value for decades ahead.
Why This Matters for Homes in Springfield, MO
Basement wall cracks, pipe penetrations, and signs of water intrusion should never be ignored. What may seem like a minor leak can allow moisture to enter your basement, leading to structural deterioration, wood damage, mold concerns and costly repairs over time. Professional evaluation and targeted repair solutions are essential to stop water intrusion at its source and protect your home’s long-term stability.
If you’re noticing wall cracks, water stains, or moisture issues in your basement, don’t wait for the damage to worsen. Contact Spartan Ram Jack Springfield today for a free inspection and learn how our crack repair and basement waterproofing solutions can help keep your home dry, protected, and structurally sound for years to come.
