Olathe Crawl Space Repair and Foundation Repair Stabilize Multi-Family BuildingÂ
- Location: Olathe, KS 66061
- Property Type: Multi-Family Housing Complex
- Project Date: April 2026
The Challenge: Foundation Settlement Compromising Structural Integrity

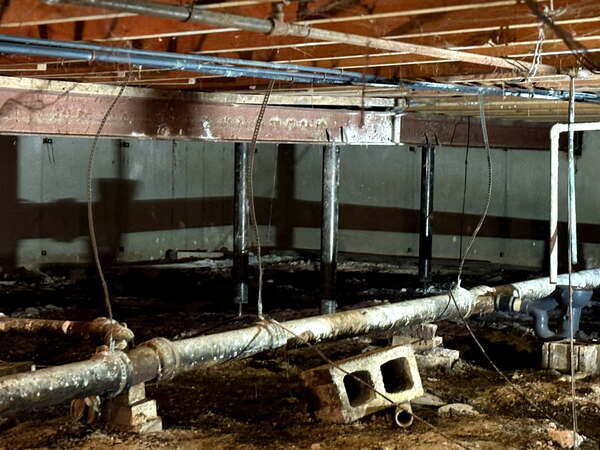

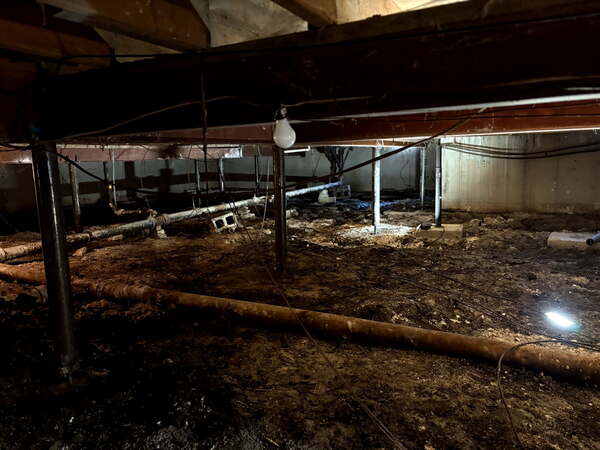

The property manager identified persistent crawl space moisture and structural settlement in this multi-family building with concrete block stem walls in Olathe, KS. Johnson County’s heavy clay soils triggered foundation wall bowing and groundwater infiltration beneath the structure. The building showed moisture accumulation in the crawl space and horizontal deflection allowing water penetration. Hydrostatic pressure pushed against block walls, weakening the subfloor near affected units.
This property demanded professional intervention from Spartan Ram Jack Kansas City. Evaluation revealed sections requiring foundation repair Kansas City and crawl space repair Kansas City for stability restoration. Without expert intervention, ongoing settlement would increase deterioration, producing structural damage, moisture complications, and compromised integrity. Strategic stabilization solutions would deliver permanent reinforcement, halting additional movement while safeguarding structural framework.
Our Solution: Comprehensive Crawl Space Repairs and Foundation Services
Spartan Ram Jack Kansas City implemented a thorough basement protection approach featuring foundation repair Kansas City and crawl space repair Kansas City methods to address structural issues for this Olathe KS property. The restoration work proceeded through methodical, engineered phases.
Standard Crew Mobilization
Our crew transported equipment to the project location, coordinating material handling and logistics for efficient execution.
Carbon Fiber Straps – Fortress Invisibeam (Transferable Life of Structure Warranty)

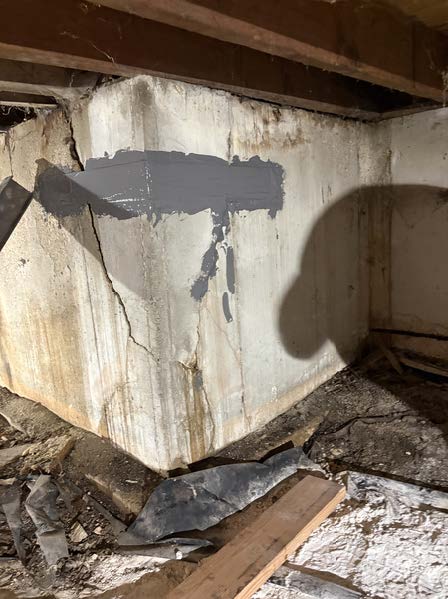

We ground vertical foundation strips and installed ICC-certified carbon fiber/Kevlar strips along the wall’s full height, epoxying them securely. This system prevents concrete from bowing inward. 4 carbon fiber straps were installed.
Wall Beams Standard (Perpendicular)
We positioned steel wall beams roughly 5 to 6 feet apart following engineered soil loading specifications to halt additional inward movement. Wall beams carry a 25-year transferable warranty. 2 wall beams were installed.
Crawlspace Prefab Base Adjustable Bracket
In order to complete the required crawl space repair, we excavated soil where necessary and installed engineered base pads. Ram Jack steel pier pipe sections were positioned with steel bases and adjustable screw jack tops for future modifications.
All materials were properly disposed of following project completion.
The Outcome: A Permanently Stabilized Foundation and Secured Olathe Property
Spartan Ram Jack Kansas City’s comprehensive solution completely halted the foundation settlement, restoring lasting stability and structural integrity to this multi-family building.
- Complete Structural Stabilization: The foundation repair Kansas City system effectively counteracted the settlement pressure, ensuring the compromised foundation cannot sink further.
- Protected Crawl Space and Living Areas: Spartan Ram Jack’s strategic excavation and crawl space repair Kansas City maintained functional access throughout the project while permanently securing the foundation wall sections.
- Immediate Settlement Relief: The stabilization system eliminated stress on the foundation, preventing progressive deterioration and catastrophic structural failure risks.
- Lasting Peace of Mind: With a permanently reinforced foundation, the property manager successfully safeguarded their investment, ensuring its stability and structural worth for decades to come.
Why This Matters for Properties in Olathe, KS
Multi-family buildings with concrete block stem walls are particularly vulnerable to foundation settlement. Subtle signs like recurring crawl space moisture, shifting foundation walls, or horizontal deflection indicate that the underlying soil is giving way. Ignoring these early warning signs can quickly lead to severe structural damage, compromising your crawl space, living spaces, and overall property value. Professional evaluation and permanent foundation repair Kansas City are essential to protect your building’s structural integrity.
Thinking about foundation issues in your property? Don’t wait until small problems turn into expensive repairs. Contact Spartan Ram Jack Kansas City today for a free inspection and expert foundation evaluation.
