When Your Garage Starts Pulling Away, And Takes Your Previous Foundation Repairs With It in Paola, KS
- Location: Paola, KS 66071
- Property Type: Single-family home with attached garage
- Project Date: March 2025
The Challenge: Previous Repairs Coming Undone
Debra D. was already a returning customer. Spartan Ram Jack Kansas City had previously injected cracks and installed piers in part of her home, and things were stable for a while.
Then new problems appeared:
- Garage separation — A growing gap developed in the siding where the garage connected to the house.
- Previous repairs failing — Basement cracks that had been injected started leaking again, and new cracks formed in the same area.
- Differential settlement — The garage was sinking and pulling down the connected part of the house, creating stress on previously stabilized areas.
- Previously piered section holding higher — Showing that the earlier piers were working, but the garage area continued to settle.
- Poor water management — Downspouts frequently detached and dumped water directly next to the foundation, washing out soil and worsening the settlement.
- Remodel concerns — Debra wanted to remodel her laundry room (connected to the garage area) but couldn’t proceed with active movement.
The garage settlement was actively undoing earlier foundation work.
Our Solution: Targeted Stabilization + Better Water Management
Spartan Ram Jack Kansas City returned with a comprehensive plan focused on the garage while protecting the rest of the home:
1. Garage Foundation Stabilization
- Installed 13 Ram Jack certified steel piers:
- 2 heavy-duty interior piers (67,400 lbs capacity each)
- 11 standard-duty external piers (40,000 lbs capacity each)
- Piers driven ~21+ feet to reach stable bearing soil/bedrock.
- Interior piers required cutting and replacing sections of the garage floor.

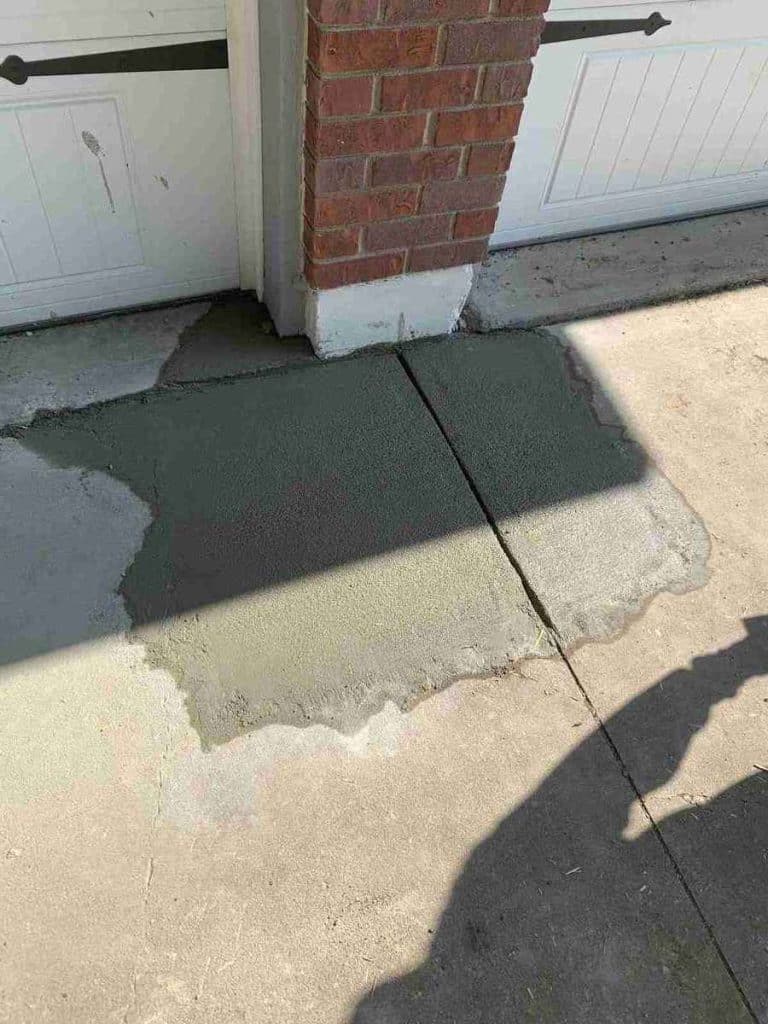

- Exterior piers excavated to the shallow footing and securely bracketed.
2. Permanent Downspout Drainage
- Buried 80 linear feet of 4-inch smooth drainage pipe connecting both garage downspouts.
- Routed water to a 12-inch catch basin in the yard, well away from the foundation.
- Eliminated future soil washout from detached downspouts.
3. Basement Water Management

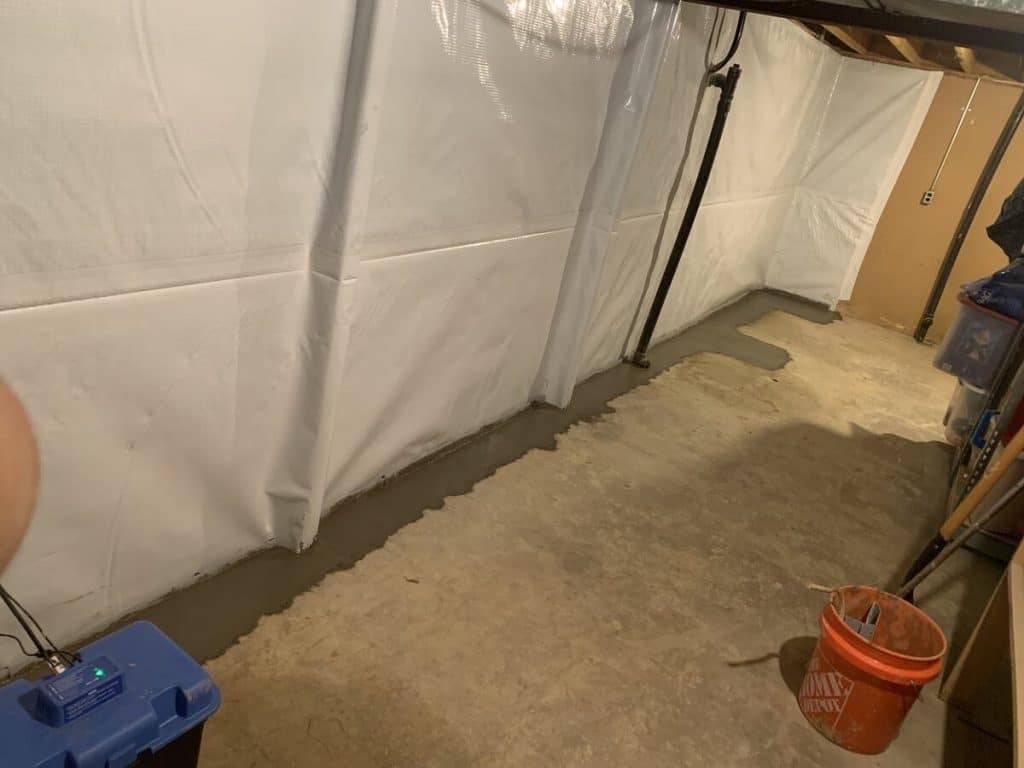

- Installed 35 linear feet of interior top-of-footing perimeter drain system.
- Added 35 linear feet of 14-mil reinforced vapor barrier.
- Included a sump pump with battery backup and buried discharge line.
- This provided long-term protection even if minor movement occurred elsewhere.
The Results
- Garage fully stabilized with 13 deep steel piers.
- Gap between garage and house stopped progressing.
- Previous basement repairs protected from further stress.
- Water now properly directed away from the foundation.

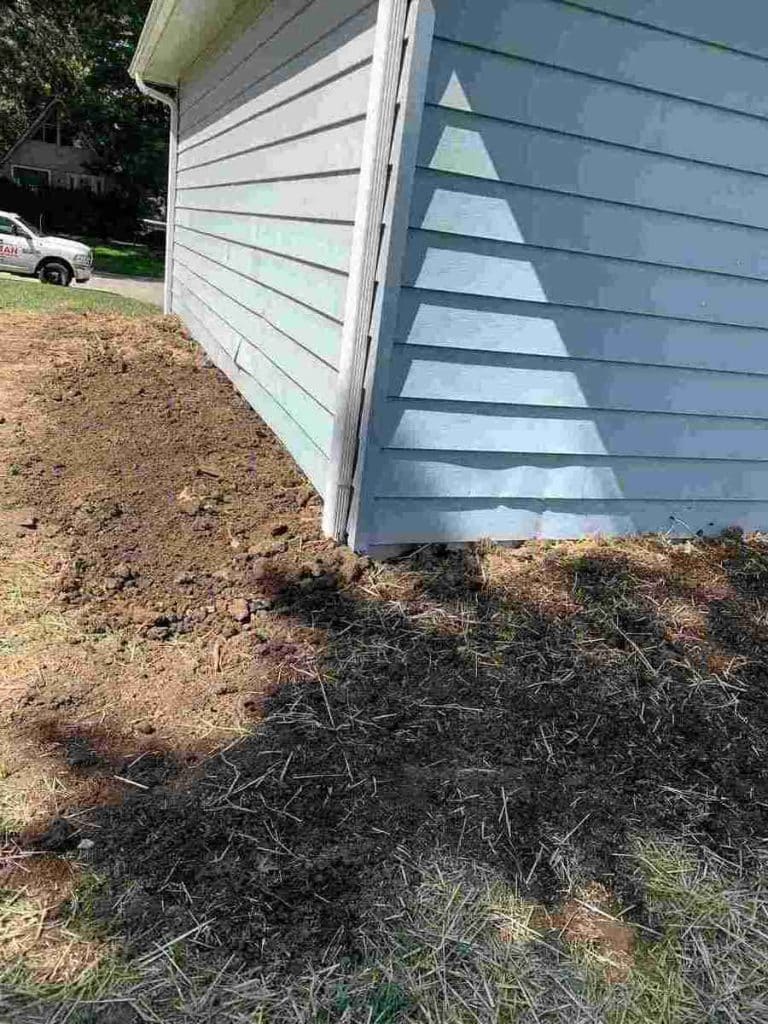

- All excavations backfilled, graded, and concrete sections restored.
Customer Outcome:
Debra can now confidently move forward with her laundry room remodel. The garage is stable with a life-of-structure warranty on the piers. She has peace of mind knowing the foundation issues are permanently addressed and the warranty is transferable if she sells the home.
Why This Matters for Kansas City Area Homeowners
Different sections of a foundation can settle at different rates over time — especially in areas with expansive clay soil. Previous repairs in one area don’t always protect attached structures like garages. Signs like returning cracks, new gaps between the house and garage, or sticking doors near old repairs often mean another area needs attention.
