Wichita Foundation Stabilized with 14 Helical PiersĀ
- Location: Wichita, KS 67230
- Property Type: 1970's single family home on slab
- Project Date: January 2026
The Challenge: Foundation Settlement Compromising Structural Integrity at Wichita Residence
Homeowners Mitch and Carrie contacted Spartan Ram Jack Wichita expressing concerns about settlement affecting their residence’s southern section. This slab-on-grade property, featuring ductwork beneath the flooring, required professional evaluation to determine appropriate stabilization measures.
Previous contractors had performed polyjacking on the western den area, but ongoing settlement issues persisted. Our comprehensive assessment identified specific areas demanding pier installation Wichita expertise to restore structural stability:
- Western Side Settlement: Floor elevation measurements revealed a 5/8-inch drop across the western sectionāinsufficient to warrant immediate stabilization intervention.
- Significant Southern Settlement: Elevation readings from east to west along the home’s southern end documented a concerning 1.5-inch differential.
- Bedroom Area Vulnerability: The southern and western bedroom sections showed the most pronounced settlement patterns requiring professional foundation support.
- Progressive Foundation Movement: Without expert intervention using helical piers Wichita solutions, continued settlement would accelerate structural deterioration, potentially causing floor damage, wall cracking, and compromised building integrity throughout affected areas.
The documented settlement patterns and slab-on-grade construction necessitated strategic helical pier placement along the western and southern bedroom zones. This targeted approach would provide permanent foundation stabilization, preventing further movement while protecting the home’s structural framework from additional settlement-related damage.
Our Solution: Helical Pier Foundation Stabilization
Spartan Ram Jack Wichita implemented a targeted foundation stabilization strategy utilizing helical pier technology to address structural settlement concerns for this Wichita residence.
The stabilization process was executed through systematic, engineered phases.
- Heavy Equipment Mobilization: Our crew mobilized specialized equipment to the project site, including loading, unloading materials, and coordinating travel logistics for efficient project execution.

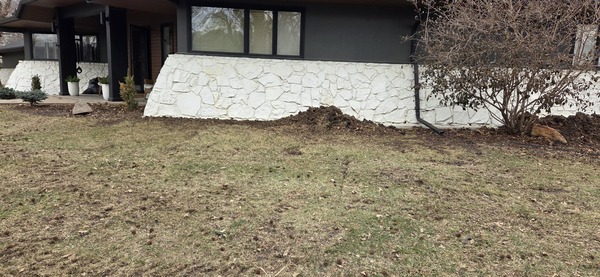

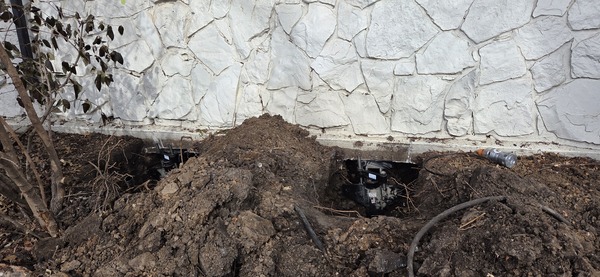

- Helical Pier Installation: We performed machine excavation to the footing at each designated pier location (estimated depth under 4 feet) and installed 14 Ram Jack certified steel helical piers to stabilize the foundation in affected areas. Pier spacing was calculated based on structural weight estimates and wall spanning capacity. Following installation, we backfilled using existing soil.

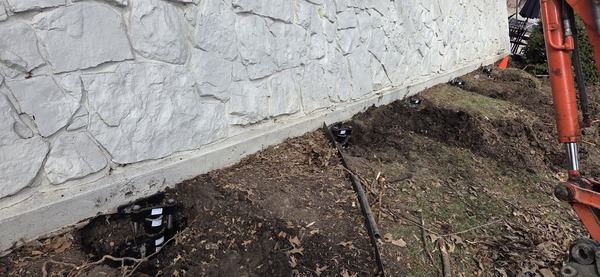

- Extended Bracket Application: We utilized extended bracket 4028 at each location, ensuring the bracket remains concealed below grade. Only the rear portion of the bracket is visible; the top remains hidden.
- Depth Specifications: This installation assumes a maximum depth of 35 feet per pier, adjusted according to soil conditions.
Due to concerns regarding limited structural weight or potential distress from hydraulically driven piles, helical piles were selected to achieve maximum depth without exerting pressure against or further compromising the home.
The Outcome: A Permanently Stabilized Foundation and Secured Wichita Property
Spartan Ram Jack Wichita’s comprehensive solution completely halted the foundation settlement, restoring lasting stability and structural integrity to Mitch and Carrie’s residence.
- Complete Structural Stabilization: The helical pier system effectively counteracted the settlement pressure, ensuring the compromised foundation cannot sink further.
- Protected Bedroom and Living Areas: Spartan Ram Jack’s strategic excavation and extended bracket installation maintained functional access throughout the project while permanently securing the southern and western bedroom sections.
- Immediate Settlement Relief: The pier system eliminated stress on the slab-on-grade foundation, preventing progressive deterioration and catastrophic structural failure risks.
- Lasting Peace of Mind: With a permanently reinforced foundation, the homeowners successfully safeguarded their property investment, ensuring its stability and structural worth for decades to come.
Why This Matters for Homes in Wichita
Slab-on-grade properties often hide challenges like inadequate soil compaction, settlement patterns, and structural vulnerabilities. Professional evaluation and flexible solutions are essential.
