Foundation repair in Wichita, KS becomes urgent when you notice your basement walls bowing inward or cracks spreading across your foundation. Foundation problems can cause symptoms throughout your home, and water damage can cause structural problems and lead to mold growth if left unaddressed. This poses a health risk. Basement walls may crack, crumble, or collapse without proper intervention.
Spartan Ram Jack Wichita specializes in foundation crack repair and bowing wall repair in Wichita. Our team understands the unique challenges local soils present. We’ll walk you through the warning signs of foundation failure in this piece. You’ll learn what causes these issues and the proven repair methods Wichita foundation repair contractors use to restore your home’s structural integrity.
Signs Your Basement Walls Are Bowing or Foundation Is Cracking
Early detection of foundation problems saves you money and prevents major structural damage. Your home sends clear signals at the time basement walls start failing.

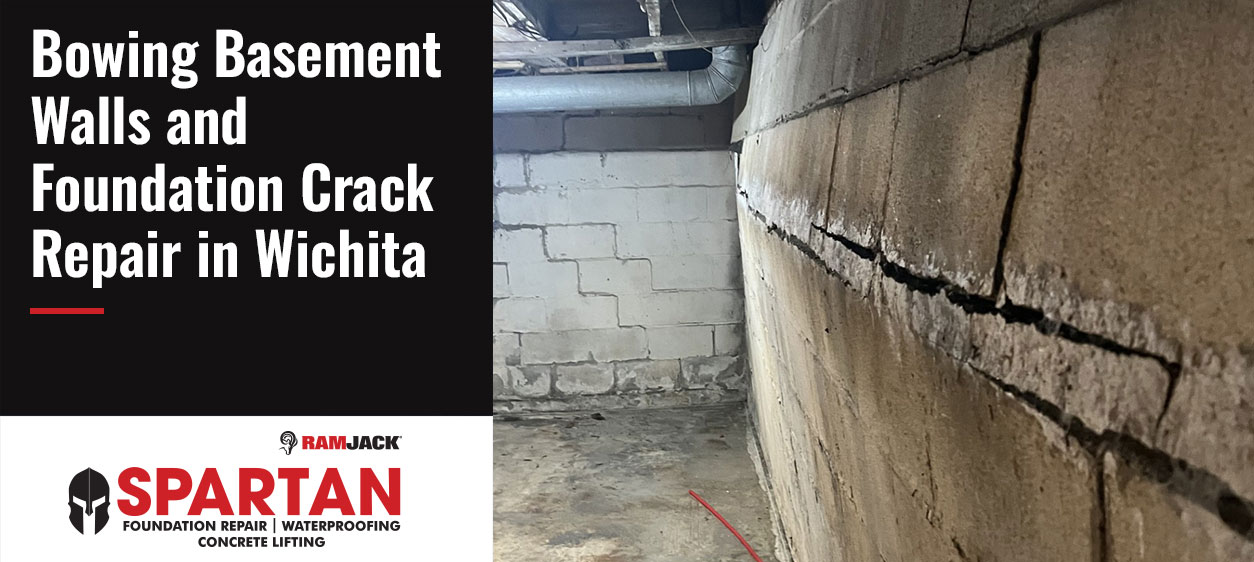

Horizontal or Stair-Step Cracks in Walls
Horizontal cracks running across your basement wall show serious external pressure pushing against the foundation. These cracks form in the middle section of the wall where stress concentrates. Stair-step cracks follow the mortar joints in a zigzag pattern on block foundations. Both types signal that your wall is moving under immense soil or water pressure. Thin vertical cracks may be normal settling, but horizontal and stair-step patterns need immediate attention from Wichita foundation repair contractors.
Walls Leaning or Tilting Inward
A bowing wall curves inward at the center while staying anchored at top and bottom. You can check for this by standing at one end and looking down the wall’s length, or by placing a level against it to see if it sits flat. A leaning wall rotates from the top and pivots around the footing. This means the connection between your wall and floor structure has been compromised. Both conditions worsen over time as soil pressure builds.
Gaps Between Walls and Ceiling or Floor
Visible gaps where your basement wall meets the floor joists above or separates from the floor below show wall movement. These gaps mean your foundation no longer provides adequate support. If you can see daylight or feel a draft through a gap at the top, the wall has moved substantially. Separation at the bottom creates entry points for water and signals ongoing structural stress.
Water Seepage Through Cracks
Dampness, water stains, or active leaks on basement walls after heavy rain reveal cracks compromising your foundation. Water enters through stressed foundation walls and leads to moisture problems, musty odors, and mold growth. Persistent dampness weakens the wall further.
Doors and Windows That Won’t Close Right
Foundation movement causes door and window frames throughout your home to become misaligned. Doors that stick, swing open on their own, or show gaps at the top reveal structural movement below. Windows that are hard to operate or won’t lock show the same issue. Multiple doors in one area experiencing problems suggests you need bowing wall repair in Wichita.
What Causes Bowing Walls and Foundation Cracks in Wichita
You can protect your home before minor issues escalate when you understand what damages foundations in Wichita. Several forces work against your basement walls. Wichita’s soil and climate create perfect conditions for foundation stress.
Soil Pressure and Expansive Clay Soils
Wichita sits in an area where expansive clay soils dominate the landscape. These clay-rich soils absorb water and swell substantially during wet periods. They shrink when conditions dry out. Expansive clay soils can exert uplift pressures up to 5,500 pounds per square foot and create immense lateral force against basement walls. Soil volume may expand 10 percent or more as clay becomes wet. Kansas ranks among states most affected by clay soil foundation damage. This constant expansion and contraction cycle puts repeated stress on your foundation. Walls bow inward and cracks form.
Hydrostatic Pressure from Water
Hydrostatic pressure builds and pushes against basement walls when soil around your foundation becomes saturated with water. Water weighs approximately 60 pounds per cubic foot. A single cubic foot of saturated soil can weigh over 120 pounds. This tremendous force presses horizontally against walls designed to support vertical loads from above. Walls begin cracking, bowing, or shifting at the base as pressure exceeds what the foundation can withstand.
Poor Drainage Around Your Foundation
Improper grading that directs water toward your home, clogged gutters, and downspouts discharging too close to the foundation all contribute to moisture accumulation. This excess water saturates surrounding soil and increases both hydrostatic pressure and clay soil expansion. Poor drainage becomes a multiplier for foundation damage rather than a standalone cause because of these combined effects.
Freeze-Thaw Cycles
Water expands by about 9 percent when it freezes. Moisture in saturated soil freezes and pushes against foundation walls with thousands of pounds of force during Wichita winters. The ice thaws and contracts when temperatures rise, but walls don’t return to their original position. Repeated freeze-thaw cycles throughout winter push walls inward and create horizontal cracks and bowing.
Foundation Crack Repair Methods in Wichita
Repairing foundation cracks requires selecting the right method based on whether you need waterproofing or structural reinforcement. Wichita foundation repair contractors use specialized materials designed for different crack types and severity levels.
Epoxy and Polyurethane Crack Injection
Spartan Ram Jack Wichita uses both epoxy and polyurethane injection to repair foundation cracks in Wichita, depending on your wall’s condition. Polyurethane foam expands up to 35 times its original volume when injected into cracks. This expansion fills the whole crack depth and creates a waterproof barrier. Polyurethane stays flexible through freeze-thaw cycles, making it ideal to stop water leaks. Epoxy resin hardens within the crack to restore structural strength. Epoxy bonds the concrete back together with high compressive and tensile strength, welding the wall. Where wall integrity matters most in structural repairs, epoxy provides permanent reinforcement. Polyurethane stops seepage right away when you have active water leaks.
Carbon Fiber Straps for Wall Stabilization
Carbon fiber straps stabilize walls experiencing minor to moderate bowing. These straps deliver tensile strength ranging from 195,000 PSI to 800,000 PSI based on the grade and weave pattern. High-quality carbon fiber products use kevlar-grade material with open grid technology that allows structural epoxy to penetrate through thousands of connection points. Carbon fiber straps work well on walls bowing less than 2 inches inward. Other methods become needed when bowing exceeds 2 inches. Each carbon fiber strap costs about $725 to $800. A standard 24-foot basement wall requires 5 straps, and total costs reach $3,625 to $4,000. Installation happens from inside your basement without excavation. Straps prevent further inward movement once bonded.
Crack Sealing for Minor Issues
Minor, non-structural cracks get sealed using polyurethane foam injection from the interior. Wichita foundation repair contractors grind and clean the crack, then inject low-viscosity polyurethane that enters even hairline cracks. The foam expands to fill voids and prevents water entry without requiring excavation or exterior access.
Bowing Wall Repair Solutions
The right repair solution depends on how much your walls have bowed and what access you have around your foundation. Spartan Ram Jack Wichita assesses wall movement before recommending one of these proven methods.
Wall Anchors to Pull Walls Back
Wall anchors consist of steel plates installed inside your basement wall and connected through steel rods to anchor plates buried at least 10 feet from your foundation. These systems stabilize walls and can pull them back toward vertical position over time. Wall anchors cost about $830 to $1,000 each. Installation is recommended every 5 feet along the bowing wall. They require much outdoor space, so wall anchors won’t work if neighboring homes sit too close or permanent structures block access.
Steel I-Beams and Wall Braces
Steel I-beams install vertically against your basement wall and anchor to the floor and ceiling joists. These beams work best for bowing that exceeds 2 inches. They provide very strong support and stop severe movement right away. I-beams take up roughly 6 inches of floor space. Wichita foundation repair contractors space these beams 3 to 6 feet apart depending on wall type.
Helical Tiebacks for Severe Bowing
Helical tiebacks function like giant screws driven at an angle through your wall into stable soil beyond. These anchors range from 14 to 21 feet long. Walls can be pulled back to vertical right away if excavation occurs before installation. Tiebacks work for walls bowing 4 inches or less.
When to Replace vs. Repair
Block or stone walls bowed more than 3 inches out of plumb should be replaced since mortar joints have failed. Bowing that exceeds 4 inches represents critical failure and requires wall reconstruction.
Free Foundation Repair Evaluation in Wichita
Professional assessment determines which repair method suits your specific foundation damage. Spartan Ram Jack Wichita provides free foundation repair evaluations throughout the Wichita area and gives you expert analysis without financial commitment.
Our certified specialists inspect your basement walls, foundation cracks, and surrounding drainage conditions when they evaluate your property. We measure wall displacement, check crack patterns, and assess soil conditions around your home. This inspection gives you the full picture and identifies the root cause of your foundation problems, not just visible symptoms.
You’ll receive a detailed report that explains what’s happening beneath your home and why. We outline repair options specific to your situation, whether you need foundation crack repair in Wichita or bowing wall repair. Each recommendation has pricing transparency so you can make informed decisions.
Our team brings specialized knowledge of Wichita’s expansive clay soils and how they affect foundations differently than other regions. This local expertise means we recommend solutions proven to work in Kansas soil conditions, not generic fixes that may fail.
Schedule your free evaluation by contacting Spartan Ram Jack Wichita. Once we assess your foundation, you’ll understand what repairs your home needs and can move forward with confidence. Minor cracks become major structural failures requiring expensive reconstruction if you wait too long.
