Overland Park Crack Repair and Basement Waterproofing Stops Water Intrusion in 1980s Home
- Location: Overland Park, KS 66212
- Property Type: 1980s single family home
- Project Date: September 2026
The Challenge: Recurring Basement Leaks THrough a Wall Crack and Walkout Entry

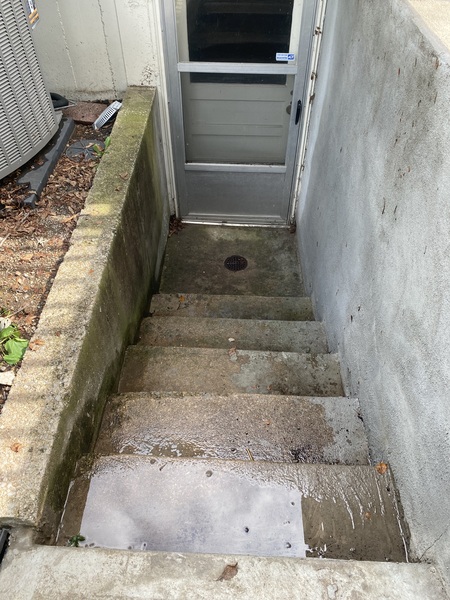

The homeowner discovered recurring basement water seepage and structural settlement in this 1980s two-story home with a finished basement in Overland Park, KS. Johnson County’s expansive clay soils caused foundation wall cracking and groundwater intrusion through the concrete slab. The property experienced water pooling at the walkout landing and an active 8-foot vertical crack allowing moisture penetration. Hydrostatic pressure forced water through floor micro-fissures, damaging the subfloor near the walkout entrance.
This residence required professional intervention from Spartan Ram Jack Kansas City. Our assessment found an active wall crack that needed crack injection and a drainage system that needed a new sump pit to manage water. Without expert intervention, continued settlement would accelerate deterioration, causing structural damage, moisture problems, and compromised integrity. Strategic waterproofing solutions would provide permanent stabilization, preventing further movement while protecting structural framework.
Our Solution: Comprehensive Basement Waterproofing and Foundation Services
Spartan Ram Jack Kansas City completed a basement waterproofing plan that combined crack injection, interior drain tile, a new sump pit, and an exterior channel drain. The repair process was completed through systematic, engineered stages.
Standard Crew Mobilization
Our team mobilized equipment to the work site, managing material loading, unloading, and transportation logistics for streamlined project completion.
Crack Injection – Urethane (Life of Structure Transferable Warranty)
We cleaned and prepared cracked sections and installed injection ports. We sealed the interior crack surface with epoxy and injected urethane material to fill the complete void in the wall. Injection ports remained in place. This procedure includes a lifetime warranty. 8 feet of crack repair was completed.

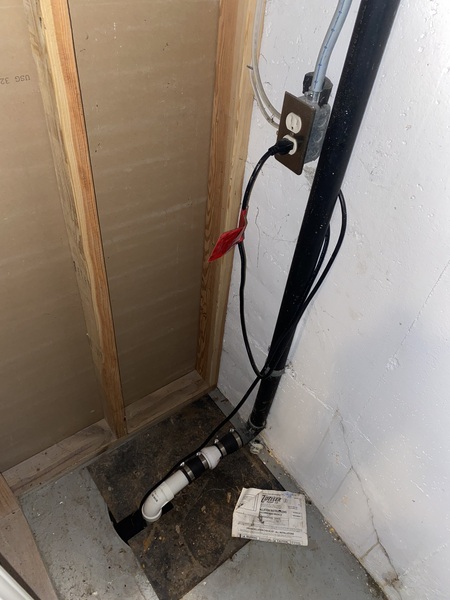

Sump Pump Pit Installation
We replaced or installed a new pit (pump and battery not included).
Interior Drain and Exterior Channel Drain
We installed 6 feet of interior perforated drain tile and 12 feet of traffic-rated exterior channel drain, connecting to drainage systems.
Concrete Work and Site Restoration
We removed and replaced 5 square feet of concrete with standard finish and disposed of all materials.
The Outcome: A Drier basement and better-protected overland park home
Spartan Ram Jack Kansas City’s waterproofing solution addressed each point where water was entering this 1980s two-story home, from leaking wall racks to the walkout landing.
- Leaking Crack Sealed at the Source: Urethan injection filled the 8-foot vertical crack through the full thickness of the wall, stopping water where it entered instead of covering the surface. The repair is backed by a Transferable Life of Structure Warranty.
- Water Captured Before It Reaches the Floor: The new section of interior drain tile collects water at the wall-floor joint and directs it to the new sump pit, protecting the finished basement from seepage.

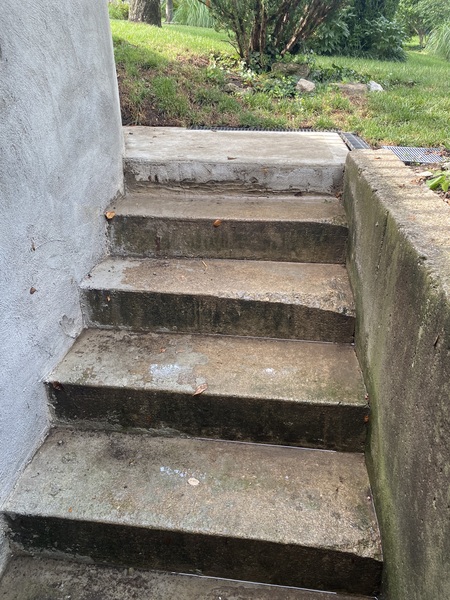

- No More Pooling at the Walkout: The traffic-rated exterior channel drain intercepts water at the walkout landing before it can collect against the entry and seep inside.
- Lasting Peace of Mind: With the cracked sealed, drainage in place inside and out, and the disturbed concrete restored, the homeowners protected their finished basement and their property’s value.
Why This Matters for Homes in Overland Park, KS
Many Overland Park homes with finished basements and walkout entries are built on Johnson County’s expansive clay soil, which swells when wet and builds hydrostatic pressure against basement walls and floors. That pressure pushes water through wall cracks, the wall-floor joint, and small openings in the slab, while walkout landings can collect runoff right at the floor. In a finished basement, even small leaks cam damage flooring, drywall, and belongings, and they create conditions for mold. Watch for dam spots along walls or floors, water at a walkout landing musty odors, and vertical cracks that darken or leak after rain. A professional evaluation followed by the right basement waterproofing solutions, such as crack injection, interior drainage, and exterior drains where water collects, is the most reliable way to keep your basement dry.
